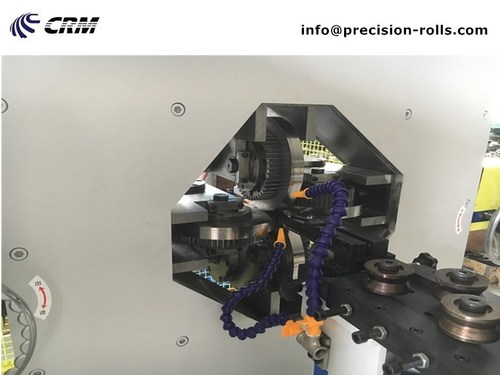

Turk Head Rolling Mill For Flat And Shaped Wires

Turk Head Rolling Mill For Flat And Shaped Wires

Product Details:

  • Type Cold Rolling Mill
  • Material rolling from round ss wire to flat and shaped wires
  • Capacity 3 Ton/day
  • Computerized Yes
  • Automatic Grade Semi-Automatic
  • Control System PLC Control
  • Voltage 380-440 Watt (w)
  • Supply Ability : 25 Set Per Year
3500 USD ($)/Set
X

Price And Quantity

  • 3500 USD ($)/Set
  • 1 Set
  • 3500.00 - 6000.00 USD ($)/Set

Product Specifications

  • rolling from round ss wire to flat and shaped wires
  • PLC Control
  • 380-440 Watt (w)
  • one year
  • Semi-Automatic
  • 75kw Watt (w)
  • Cold Rolling Mill
  • Yes
  • 3 Ton/day

Trade Information

  • FOBshanghai
  • 25 Set Per Year
  • 2 Months
  • Yes
  • If order is confirmed we will reimburse the sample cost
  • standard expor packages
  • Africa, Western Europe, Eastern Europe, North America, Asia
  • ISO

Product Description

Turk Head For rolling Flat Wire And Shaped WiresTurks heads,turks head assembly,4 hi cold rolling machine,stainless steel wire profile rolling mill
Characteristics : compact structure with low cost, Suitable for low value-added wires.

Uses: GLWA-120 series rolling cassettes are specially designed to replace traditional dies used on rectangular or square wire drawing lines.

Applying material: used to roll rectangular and squire wires, Suitable for non-ferrous and ferrous metals such as high, middle carbon steel wire, stainless steel wire, copper, aluminum and alloys.
Only one set of standard roller is needed, possibilty of roller non-replacing when forming profiled wires.

Attributes: No drive. Round wire can be used to produce small or medium rectangular or square wire

Advantages: Its working life is productive than the profiled dies so that improving efficiency, saving cost and could change the polishing technology for user.

It can be operated without lubricating oil (dry operation) in a special case.

Roll material:  the rollers are often chosen for their final products, such as tool steel, sintered metal or carbide steel.

Uses method: usually equipped with tractor or wire drawing machine

Optional devices: guide wire device, rolling force measurement system, central lubrication system, etc.
