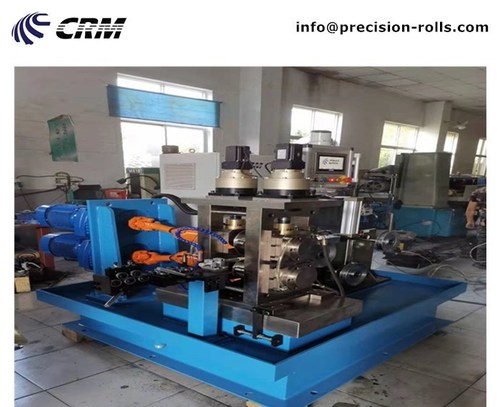

Metal Shaped&Flat Wire Roll Forming Machine

Metal Shaped&Flat Wire Roll Forming Machine

Product Details:

  • Type Cold Rolling Mill
  • Material ss wire,carbon steel wire,alloy wire
  • Computerized Yes
  • Automatic Grade Automatic
3500 USD ($)/Set

Price And Quantity

  • 3500 USD ($)/Set
  • 3500.00 - 6000.00 USD ($)/Set
  • 1 Set

Product Specifications

  • Automatic
  • ss wire,carbon steel wire,alloy wire
  • Cold Rolling Mill
  • Yes

Trade Information

  • shanghai,China
  • Letter of Credit (L/C), Telegraphic Transfer (T/T)
  • standard export packages
  • ISO

Product Description

Product Description

2 Hi strip and wire rolling machine

It is possible to perform high precisionflat& shaped wires rolling experiments from round inlet wires.

Uses: used for rolling micro flat wire,square wires, rectangular but also Wedge wire, pentagonal wires, hexagonalwires, semicircular wires(the machine uses mainly in Flat wire and strips).

process: shapes can be cold-rolled if thecross-section is relatively uniform and the transverse dimension is relativelysmall. Cold rolling shapes requires a series of shaping operations, usuallyalong the lines of sizing, breakdown, roughing, semi-roughing, semi-finishing,and finishing.



1.2 type can choose, the one is neededreplacing the rolls when forming different wire, the others is not need.

2.reduces overall separating force requiredfor reductions

3.reduces overall energy needed for reducingmaterial

4.produces more consistent thickness output

5.Press-down mode free to choose: electricor manual

6.Main power free to choose: servo motor orthree-phase asynchronous motor

7.Optional devices free to choose: guidewire device, laser measurement system, central lubrication system, etc.

8.Roll diameter: 75-350mm or can becustomized.

9.We can improve the design according tothe needs of different customers
